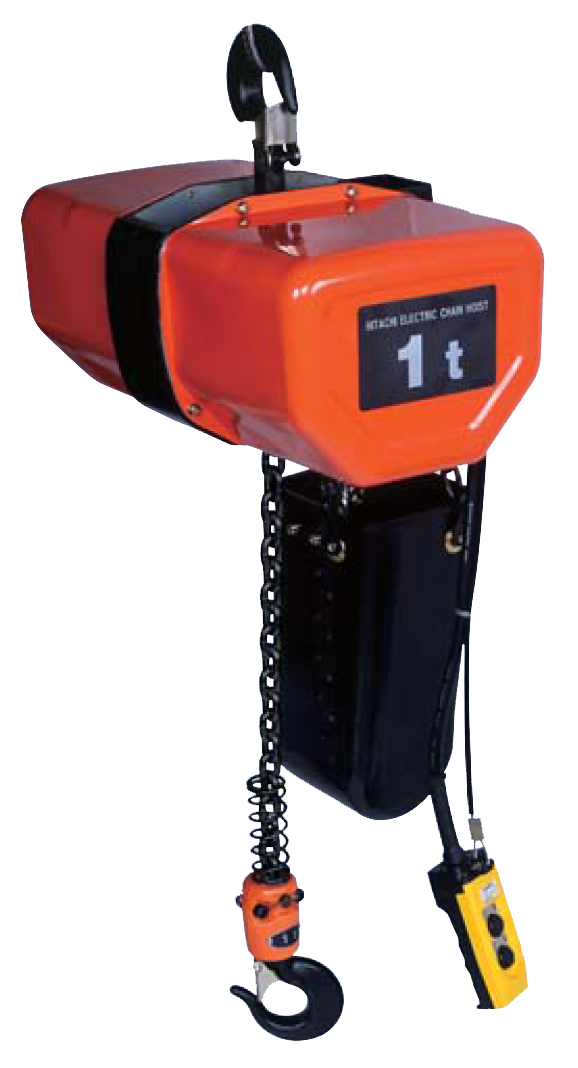

Electric Chain Hoist

Electric Chain Hoists are used in a wide range of applications to make cargo handling more efficient. Applications range from typical factory style handling operations to construction sites and even boat lifting.

assets/uploads/products/electric-chain-hoist/electric-chain-hoist2.png

Features

  • HELICAL GEARING
    Used where practical to provide quiet operation.
  • LONG LIFE BRAKE UNIT
    High Cooling Head Disk type Electro-Magnetic brake system for steady operation and long life F series hoists are equipped with patented Automatic Adjusting Brake for easier maintenance and added safety.
    U.S PAT.3908802
    W.Germany PAT.2354044
  • LIMIT SWITCH (Upper and Lower)
    Interrrupt motor power to prevent hook overtravel and hazardous condition such as chain kink.
  • PLUG-IN CABLES
    Reduce maintenance time and installation.
  • ELECTRO-MAGNETICS CONTACTOR
    With mechanical-interlocking against line short by mechanical shock. Moist sizes are provided with REVERSE PHASE INSPECTING RELAY cut control circuit when reverse phasing.
  • CHAIN CONTAINER
    As standard part for safer operation.
  • POWER CHAIN
    Special (paterned) alloy steel chain surface hardeded for optimum strength and wear resistance.
    (DIN-5684-8)(U.S. PAT. 3830054)
  • LOWER HOOK
    Is heart-treated and equipped with safety latch and 360° swivelling.
  • PUSHBUTTON CABLE
    Is molded with strain relief wire rope into one body. This assures easier and safer operation.
  • PUSHBUTTON SWITCH
    Is rain-proof plastic for severe impact and corrosive atmosphere resistance and mechanically interlocked.The 24 volt control circuit reduce shock hazard to the operation.
